FortiGate 40F Firewall Malaysia | SysIT Kuala Lumpur

The FortiGate 40F is a compact, fanless next-generation firewall (NGFW) with Secure SD-WAN, IPS, SSL inspection, and advanced threat protection. SysIT Malaysia supplies, deploys, and supports FortiGate 40F firewalls for small businesses, branch offices, and distributed environments across Kuala Lumpur, Selangor, and nationwide.

As a Fortinet solutions specialist in Malaysia, SysIT delivers complete FortiGate 40F solutions — from sizing and licensing to professional installation, configuration, and managed firewall services.

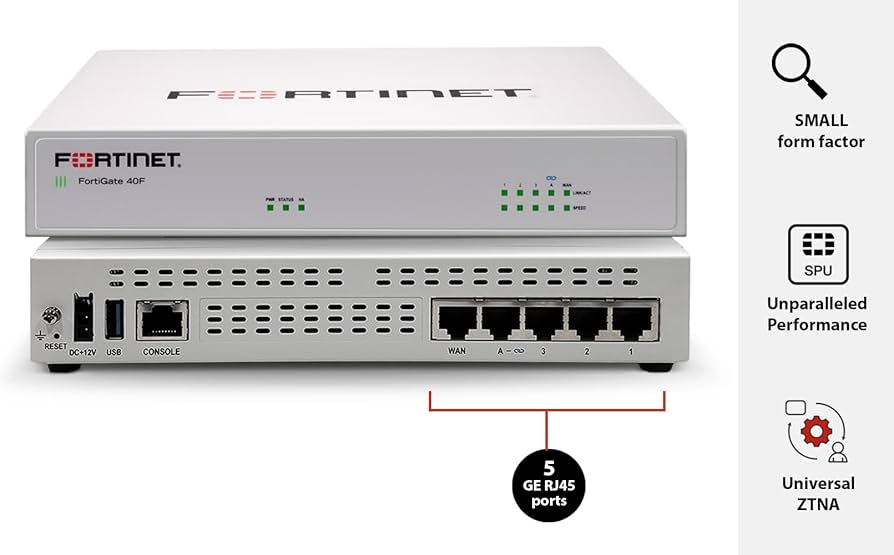

FortiGate40FImage

Why Businesses Trust Us

Fast Deployment

Genuine Fortinet Hardware

SMB & Branch Specialists

Post-Sales Support

Ideal Use Cases for FortiGate 40F

Ideal For

  • Small offices (SMB HQ or single-site businesses)
  • Branch offices (multi-site companies)
  • Branch offices (multi-site companies)
  • Clinics, studios, agencies
  • Temporary sites needing fast WAN + VPN

You are a good fit if you need:

  • Strong security on a modest WAN link
  • Secure IPsec VPN to HQ or cloud
  • Optional SSL VPN for remote users
  • Easy deployment and centralized visibility

Why Buy FortiGate 40F from SysIT Malaysia?

  • Malaysia-based Fortinet firewall specialist
  • Local engineers in Kuala Lumpur & Klang Valley
  • Professional firewall sizing & security design
  • On-site installation & configuration
  • Post-sales support, AMC & managed firewall services
  • Genuine Fortinet hardware & subscriptions

Performance Snapshot (Real-World Security)

1 Gbps

IPS Throughput

800 Mbps

NGFW Throughput

600 Mbps

Threat protection

310 Mbps

SSL Inspection

Sizing tip: For SaaS-heavy environments (Microsoft 365, Google Workspace, CRM), prioritize Threat Protection and SSL Inspection throughput over raw firewall speed.

Technical Specifications – FortiGate 40F

Performance

IPS Throughput1 Gbps
NGFW Throughput800 Mbps
Threat Protection600 Mbps
SSL Inspection310 Mbps
SSL-VPN Throughput490 Mbps

VPN Capacity

IPsec Throughput4.4 Gbps
Gateway-to-Gateway Tunnels200
Client-to-Gateway Tunnels250
Max SSL-VPN Users200

Interfaces & Ports

GE RJ45 WAN / DMZ1
GE RJ45 Internal3
GE RJ45 FortiLink1
USB Ports1
Console (RJ45)1

VARIANTS & RELATED MODELS

FortiGate 40F (Wired)

Standard Wired desktop NGFW designed for SMBN and branch environment requiring secure connectivity VPN access and Secure SD-WAN.

FortiGate 40F

Wireless variant of the 40F family with integrated wifi, ideal for small offices and locations where separate access points are not required

40F with Cellular Options

Supports USB-based cellular connectivity using compatible third -party 3G/4G modems for backup or temporary WAN access

Alternative Sizing Options

Deployment Notes

Recommended Branch Topology

Primary WAN with optional backup via USB modem. IPsec VPN connectivity back to HQ or hub firewall Secure SD-WAN policies for voice, video, and CRM traffic

Minimum Viable Segmentation

VLAN 10: Staff and internal users
VLAN 20: Guest Wi-Fi access
VLAN 30: POS, IoT, or CCTV devices
Block lateral movement by default

Operations & Manageability

Designed for simplified branch rollout
Consistent policy enforcement across sites
Expandable logging and monitoring options

FortiGuard Subscriptions

Why FortiGuard Services Matter

FortiGate hardware is typically paired with FortiGuard AI-powered security services to keep protections continuously updated. These services deliver real-time threat intelligence, filtering databases, and advanced security functions required for modern networks.

  • Intrusion Prevention (IPS) updates
  • Antivirus and malware signature updates
  • Web and application filtering databases
  • Security intelligence for emerging threats

Which Subscription Should You Choose?

Most SMB and branch deployments benefit from bundled security subscriptions that provide comprehensive protection with minimal ongoing management.

  • Security Bundles: Best for set-and-forget protection
  • Essential Services: Suitable for strict cost control
  • FortiCare Support: Required for updates and hardware support
    Subscription terms are typically available in 1-year, 3-year, or 5-year options and can be aligned with your operational and budget needs.

FortiGate 40F Pricing & Licensing (Malaysia)

FortiGate 40F pricing in Malaysia varies based on the selected hardware model, FortiGuard security subscription bundle, and support duration (1-year, 3-year, or 5-year).

As an entry-level Fortinet firewall, the FortiGate 40F is generally positioned as a cost-effective NGFW solution for small offices and branch environments when bundled with FortiGuard security services.

What affects pricing:

  • Number of users and Internet bandwidth
  • Threat protection and SSL inspection requirements
  • VPN usage (remote users and site-to-site)
  • Subscription and support term length

To ensure accurate sizing and long-term value, pricing is best determined based on your specific deployment requirements.

Get the right FortiGate 40F Package

Tell Us your users, WAN Speed and VPN needs. we’ll recommend the right bundle
