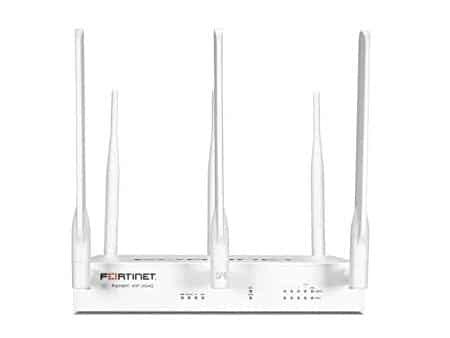

Fortinet FortiWiFi 40F Firewall

FortiWiFi 40F is a compact next-generation firewall with integrated wireless connectivity, Secure SD-WAN, and advanced threat protection — ideal for small businesses, retail outlets, and branch offices.

GET QUOTE

Overview

FortiWiFi 40F combines firewall security, SD-WAN, VPN, and integrated Wi-Fi into a single desktop appliance. Powered by FortiOS, it delivers enterprise-grade security and network visibility without complexity.

Key Features & Capabilities

Integrated Secure Wi-Fi

Built-in wireless (802.11a/b/g/n/ac) provides secure connectivity for staff and guest users without the need for a separate access point.

Advanced Threat Protection

Firewall, IPS, antivirus, web filtering, and application control powered by FortiGuard AI-driven security services.

Secure SD-WAN Ready

Application-aware SD-WAN optimizes WAN traffic, improves cloud application performance, and reduces connectivity costs.

Use Cases – FortiWiFi 40F

FortiWiFi 40F is designed for small to mid-size environments requiring secure wired and wireless connectivity with simplified management.

Small Office Networks

Combines firewall and Wi-Fi into one device for offices with limited IT resources.

Retail Stores & Outlets

Secures POS systems, guest Wi-Fi, and business applications with stable and protected wireless access.

Remote & Branch Offices

Enables VPN connectivity to headquarters with integrated wireless and centralized security policies.

Professional Offices

Protects sensitive client and business data in clinics, accounting firms, and consulting offices.

Growing Businesses

Scales easily as user count and security requirements increase.

Temporary & Pop-Up Locations

Quick deployment with built-in Wi-Fi makes it ideal for pop-up stores and temporary offices.

Technical Specifications

Performance

Firewall ThroughputUp to 5 Gbps
IPS ThroughputUp to 1 Gbps
NGFW ThroughputUp to 800 Mbps
Threat ProtectionUp to 600 Mbps
SSL / TLS InspectionSupported

VPN & Remote Access

IPsec VPNUp to 200 Tunnels
Client-to-Gateway VPNUp to 250 Users
SSL VPNSupported
Remote Access UsersSMB Scale

Interfaces & Ports

RJ45 Ethernet5 × GE
WAN Interfaces1 × GE
Internal Ports4 × GE
Console PortRJ45

System Capacity

Concurrent Sessions700,000
New Sessions / Second35,000
Firewall PoliciesUp to 5,000
LatencyLow

System Limits

Virtual Domains (VDOMs)Up to 10
FortiSwitch SupportUp to 8
FortiAP SupportUp to 16
FortiToken SupportUp to 500

Management & Services

Secure SD-WANYes
Central ManagementFortiManager
Logging & AnalyticsFortiAnalyzer
Security ServicesFortiGuard

Subscription & Licensing

FortiWiFi 40F operates as a secure firewall and integrated wireless gateway out of the box. Advanced security, SD-WAN optimization, and threat protection features are enabled through FortiGuard subscriptions and FortiCare support.

  • Unified Threat Protection (UTP)
  • Advanced Threat Protection (ATP)
  • Enterprise Protection Bundle
  • FortiCare Essential or Premium Support
  • 1-year, 3-year, or 5-year subscription options

FortiWiFi 40F Solutions by SysIT Malaysia

  • SYSIT, based in Kuala Lumpur, Malaysia, provides FortiWiFi firewall selection, licensing consultation, professional deployment, and ongoing support for small businesses, retail outlets, and branch offices across Malaysia.

Need Help Choosing the Right Bundle?

Tell us your network size, security requirements, and wireless needs — we’ll recommend the best FortiWiFi 40F configuration.

Request Quote
